Valiant Garage Door · Project 82949

Livermore · Hinges And Rollers

City: Livermore · Scope: Hinges And Rollers

19 project photos · 1 repair videos

Project photos

Livermore garage door project photo 1 — Project photo 1

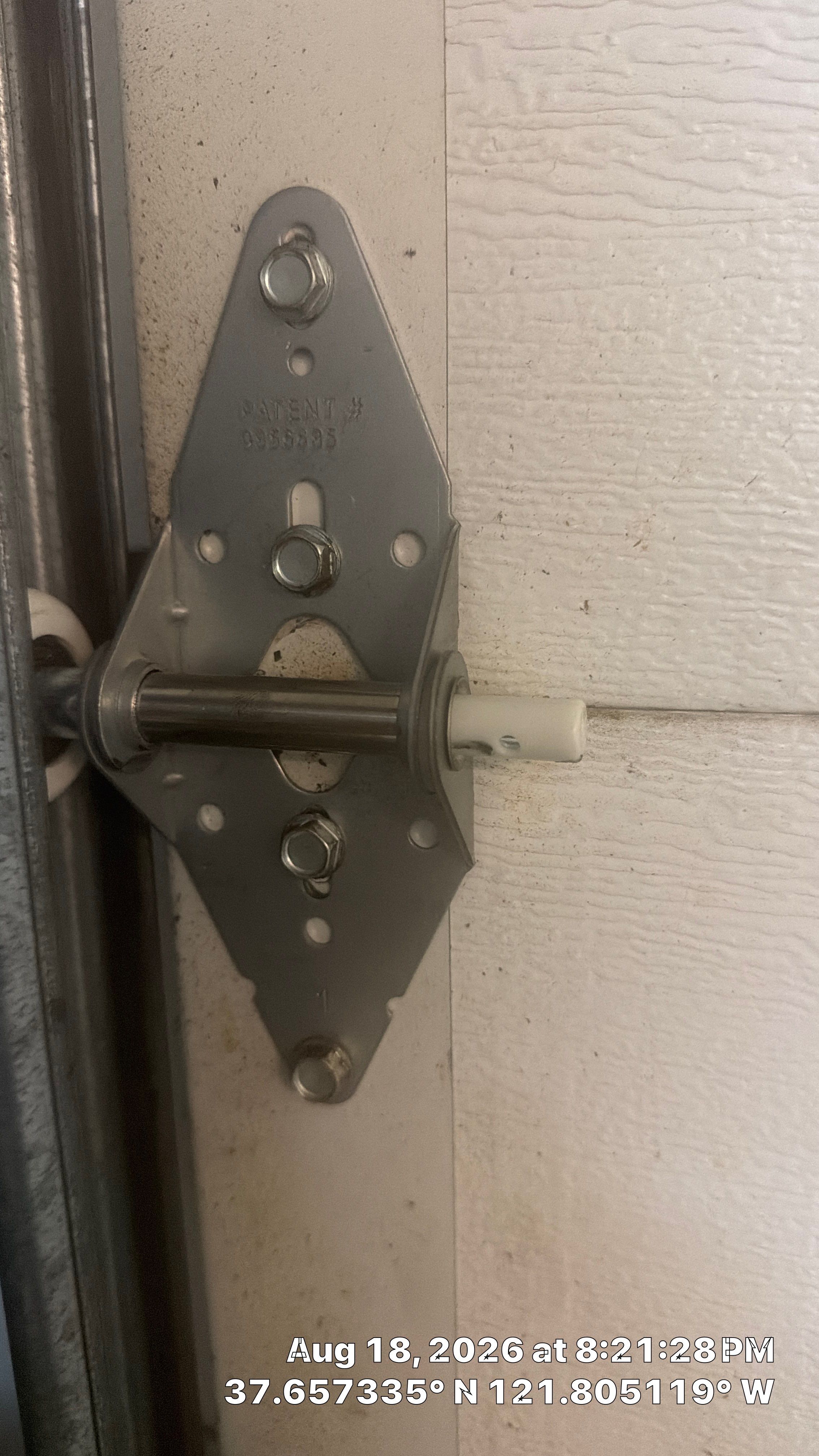

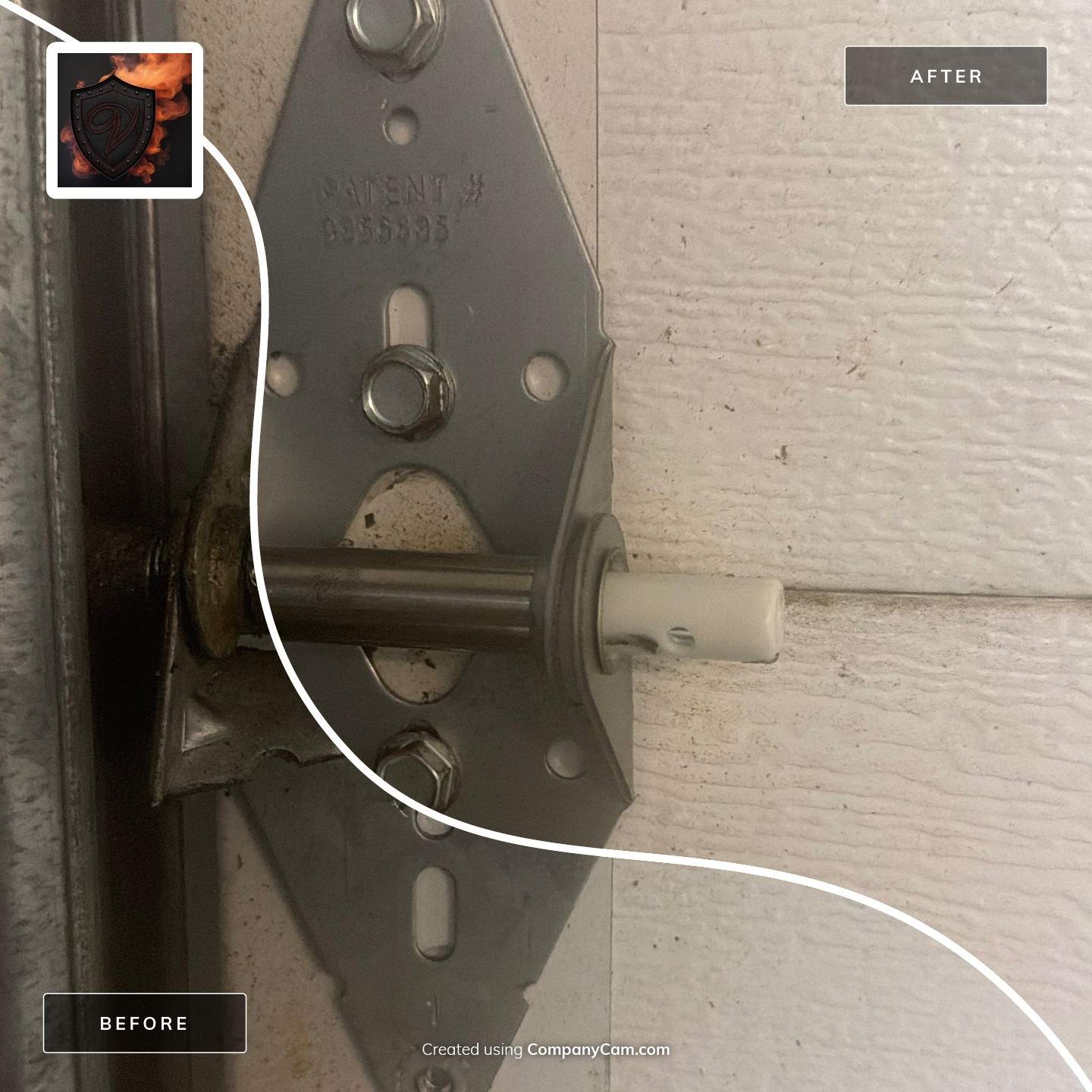

broken Hinge and old roller replaced with New Heavy Duty Quiet Hing and

Specifications:
Component: Roller installation
Bearing Type: 6200ZZ
Coating: Nylon coated
Shaft Diameter: 10 mm
Roller Width: 30 mm
Maximum Load Capacity: 4,500 N
Operating Temperature Range: -20°C to 120°C
Recommended Lubrication: Lithium-based grease — broken Hinge and old roller replaced with New Heavy Duty Quiet Hing and Specifications: Component: Roller installation Bearing Type: 6200ZZ Coating: Nylon coated Shaft Diameter: 10 mm Roller Width: 30 mm Maximum Load Capacity: 4,500 N Operating Temperature Range: -20°C to 120°C Recommended Lubrication: Lithium-based grease

Livermore garage door project photo 3 — Project photo 3

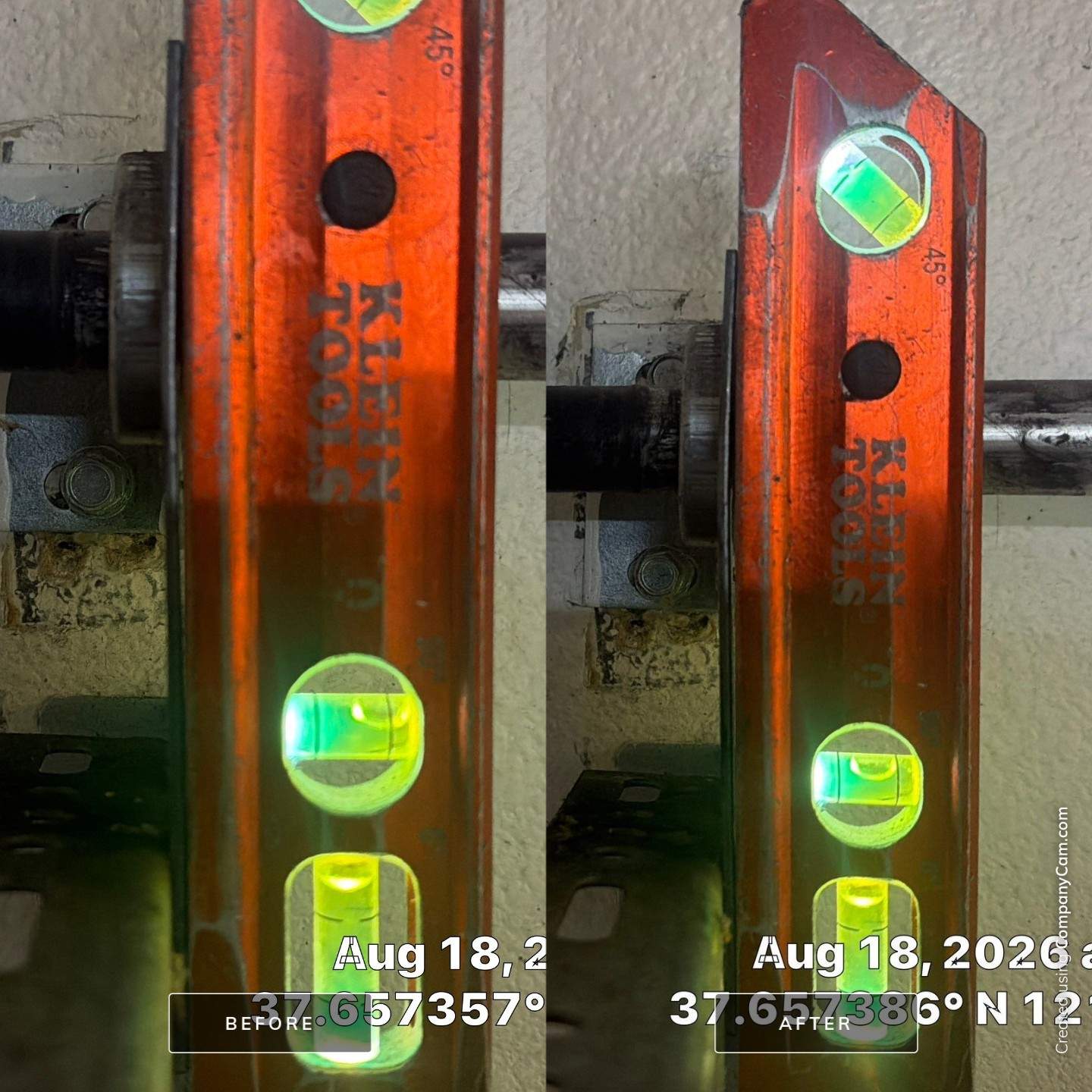

The end bearing plate being crooked damages the cable & cable drum causing premature failure and excessive operational noise.

Livermore garage door project photo 5 — Project photo 5

Livermore garage door project photo 6 — Project photo 6

Livermore garage door project photo 7 — Project photo 7

Livermore garage door project photo 8 — Project photo 8

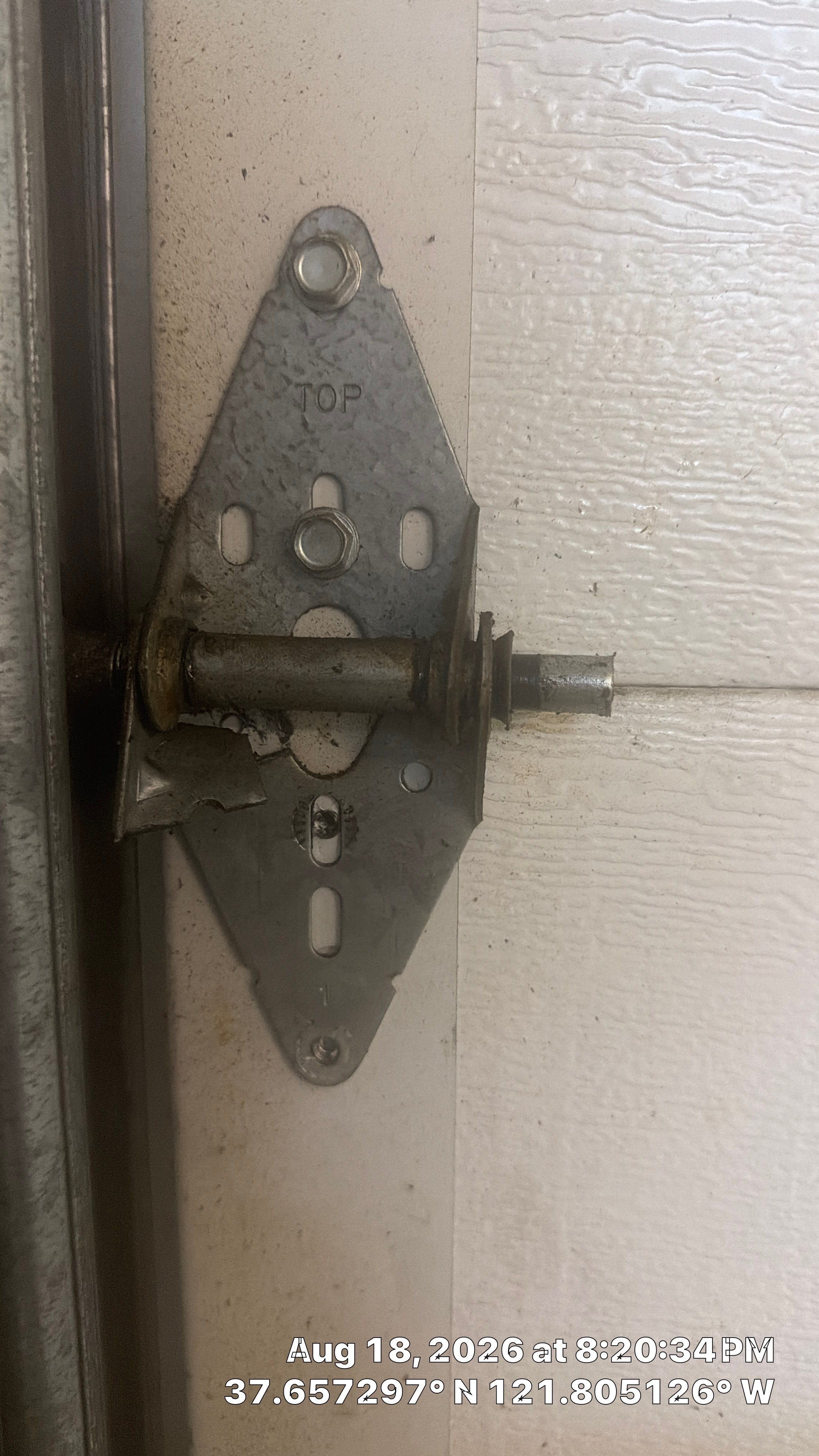

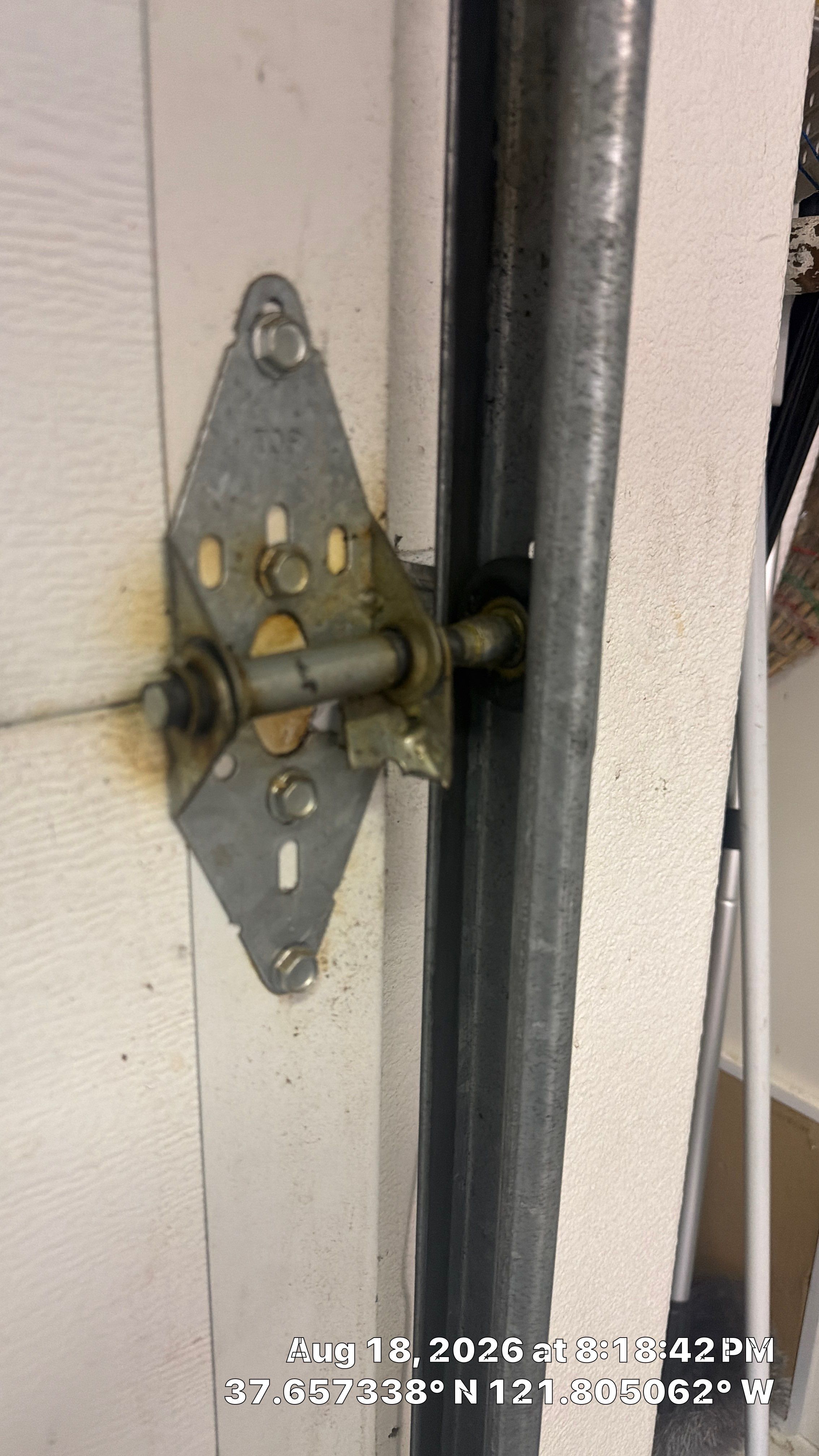

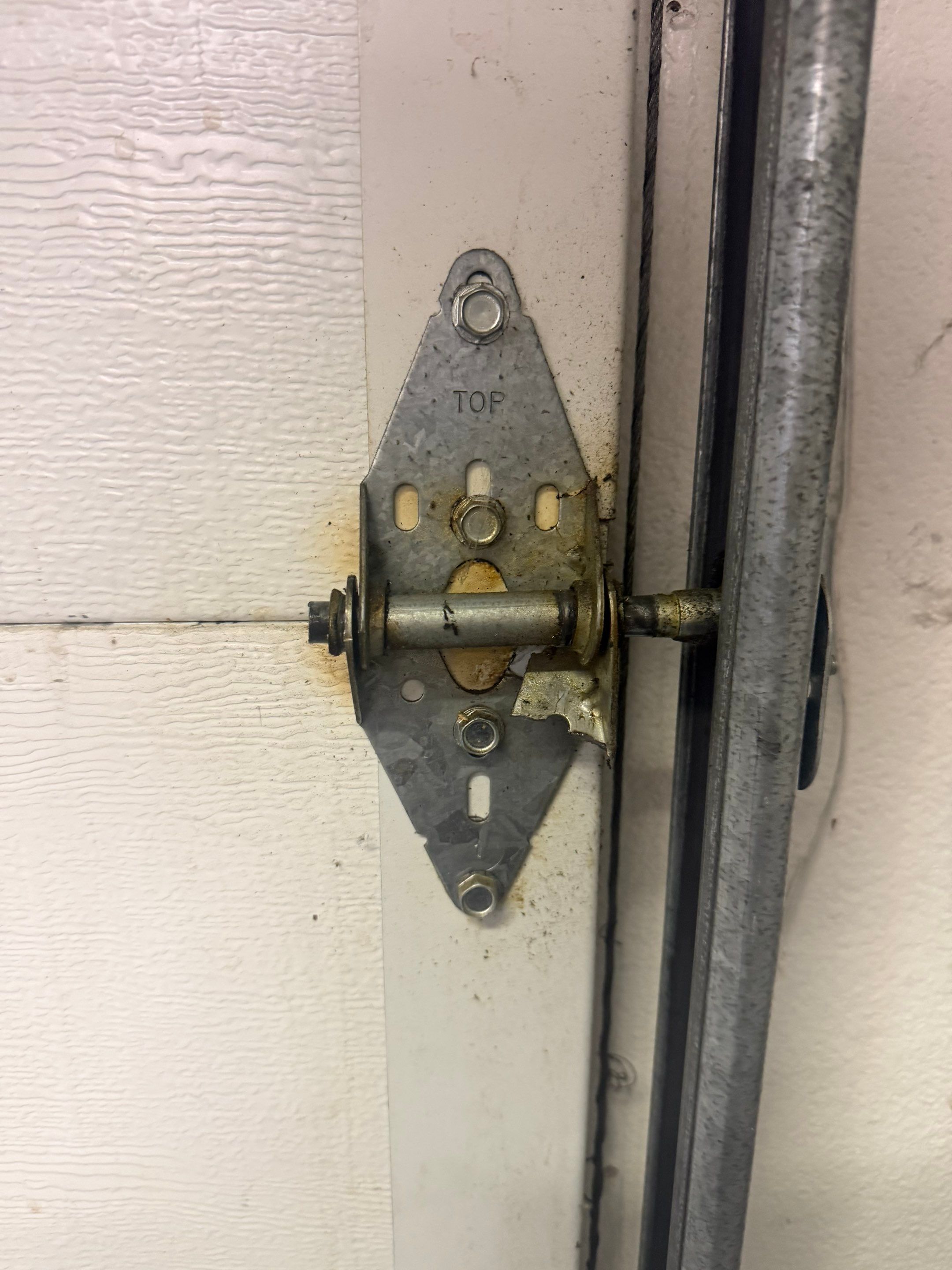

Damaged hinge, number one. Old worn out roller, unsealed.

Livermore garage door project photo 10 — Project photo 10

Livermore garage door project photo 11 — Project photo 11

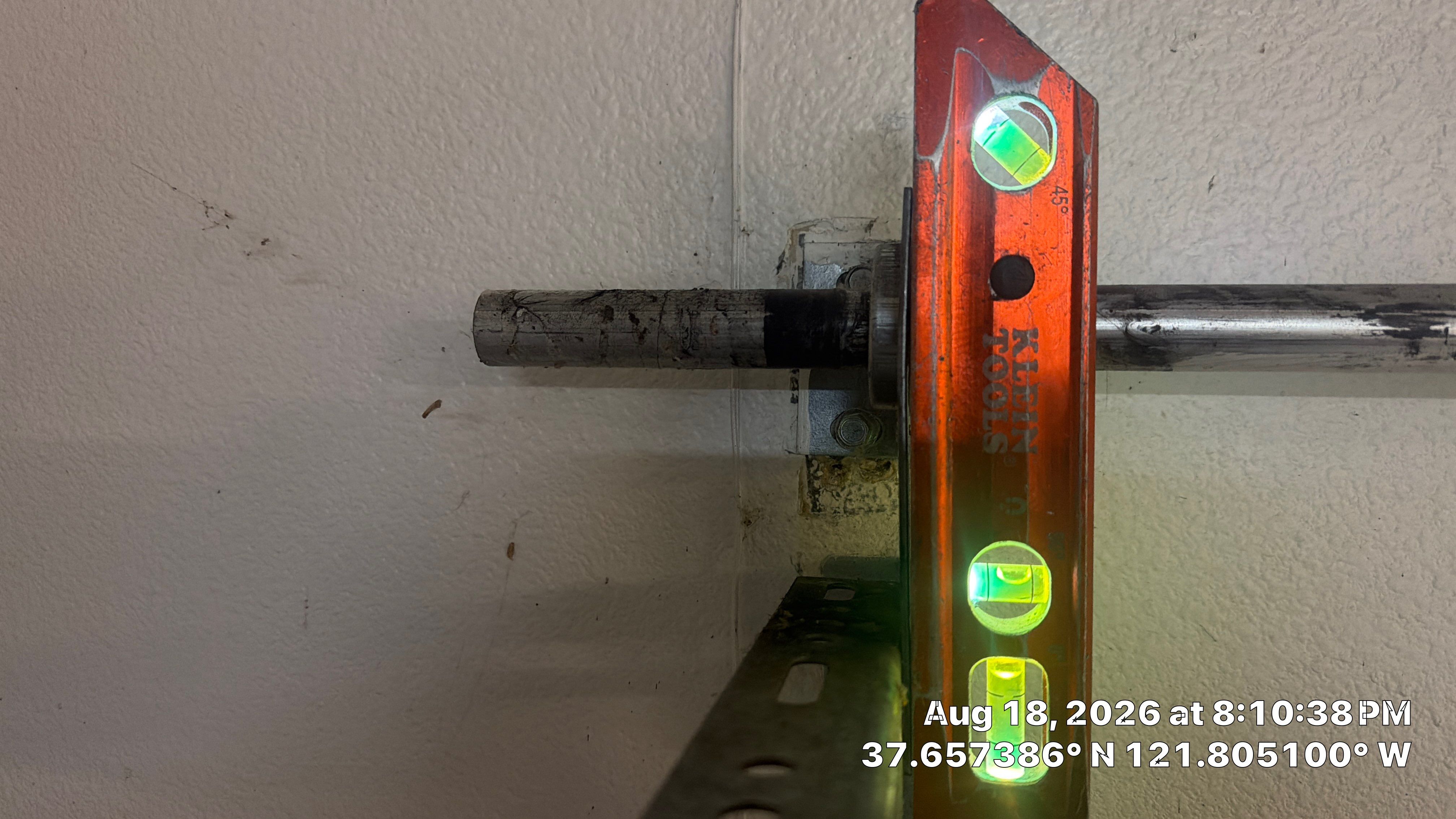

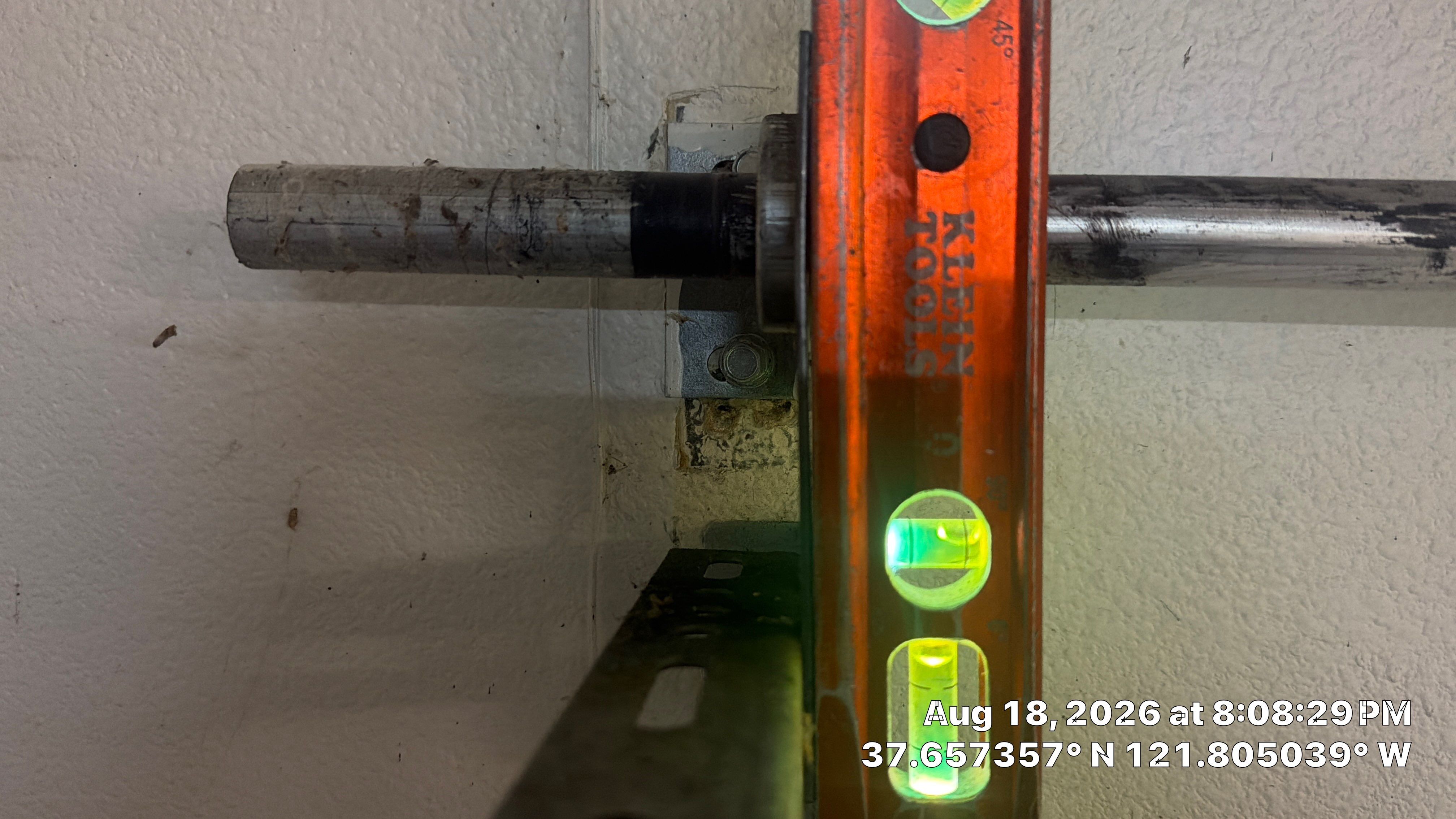

End plate centered and straight installed correctly.

Livermore garage door project photo 13 — Project photo 13

Livermore garage door project photo 14 — Project photo 14

Livermore garage door project photo 15 — Project photo 15

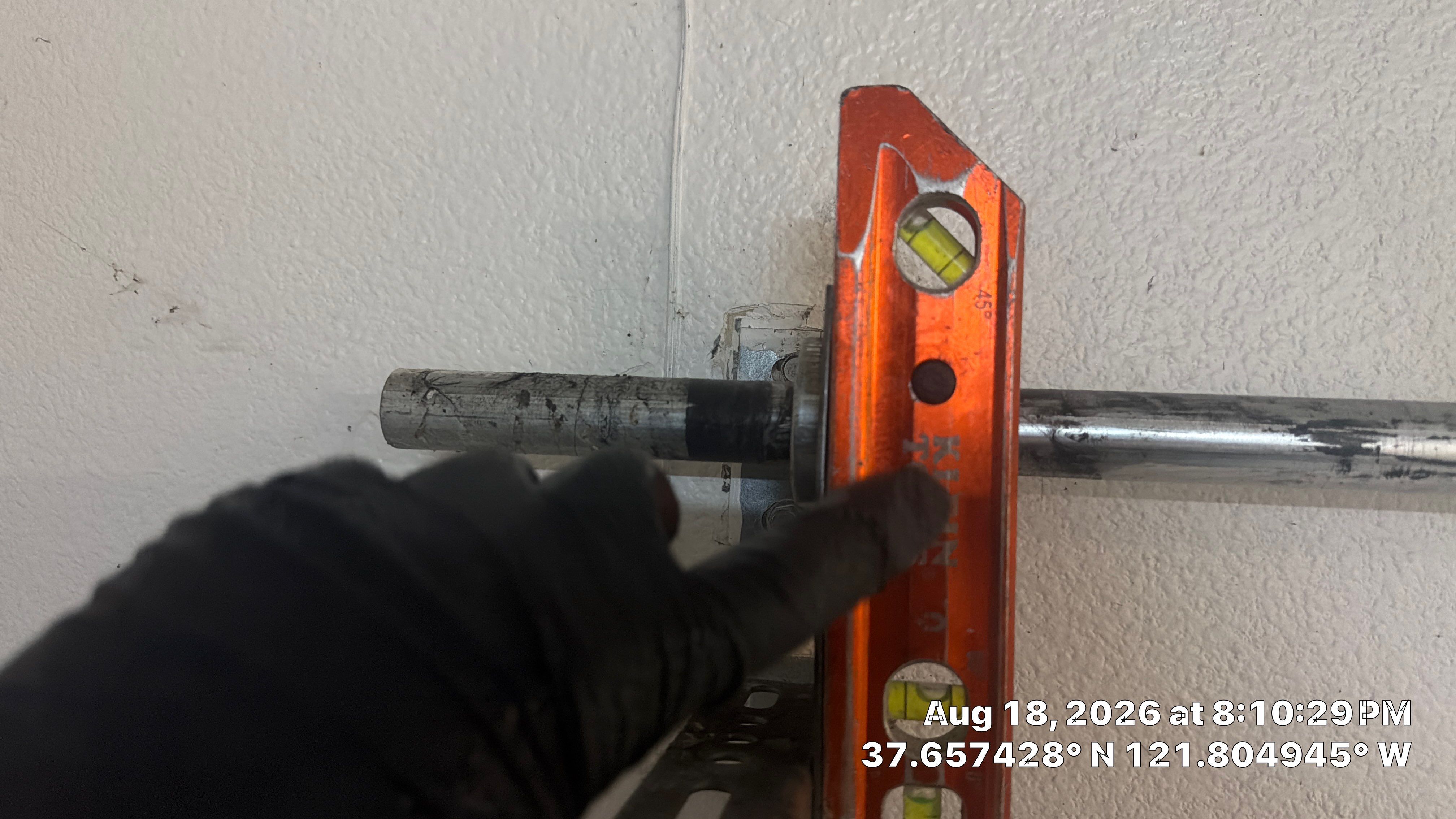

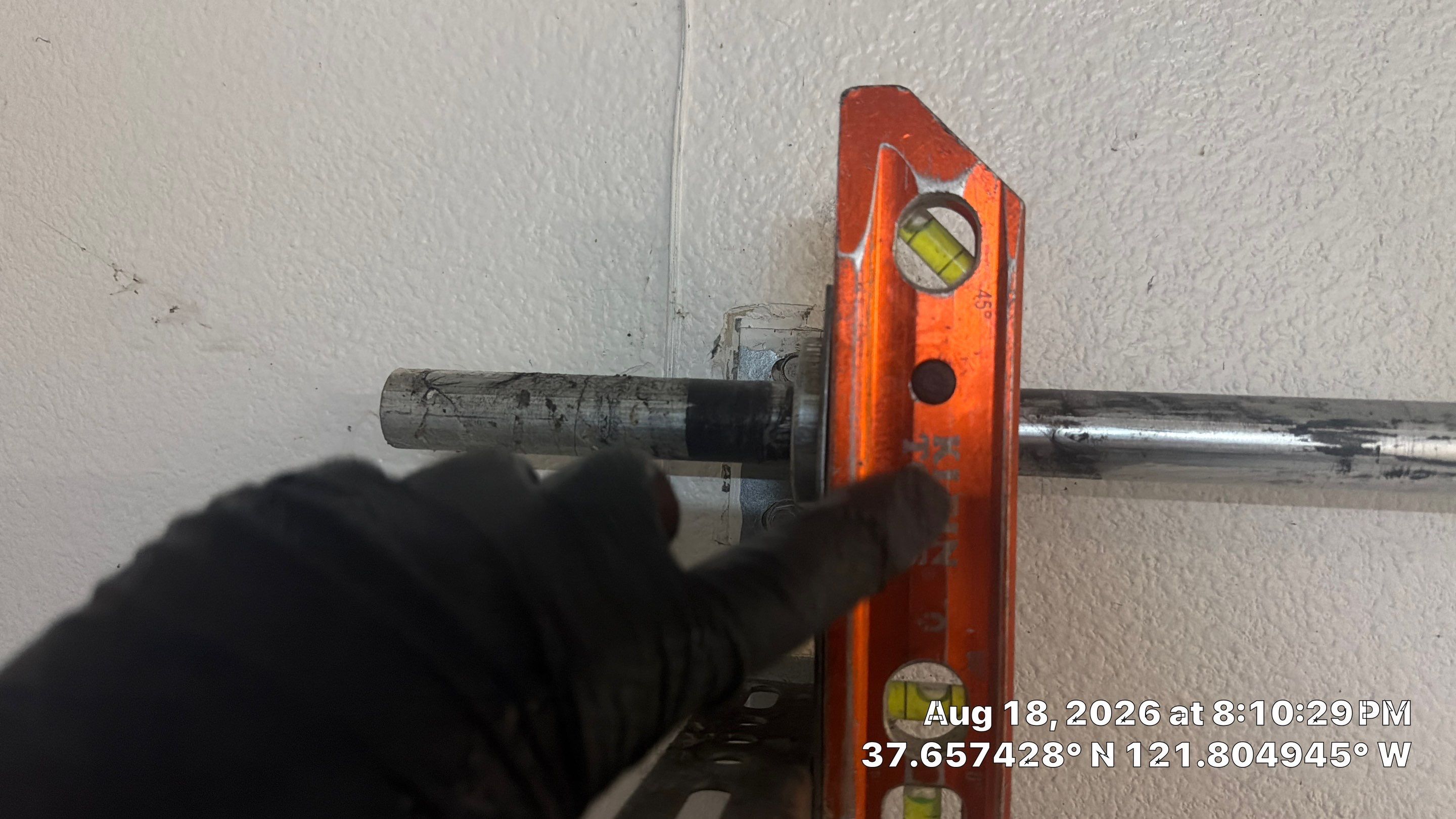

Severely crooked end plate.

Livermore garage door project photo 17 — Project photo 17

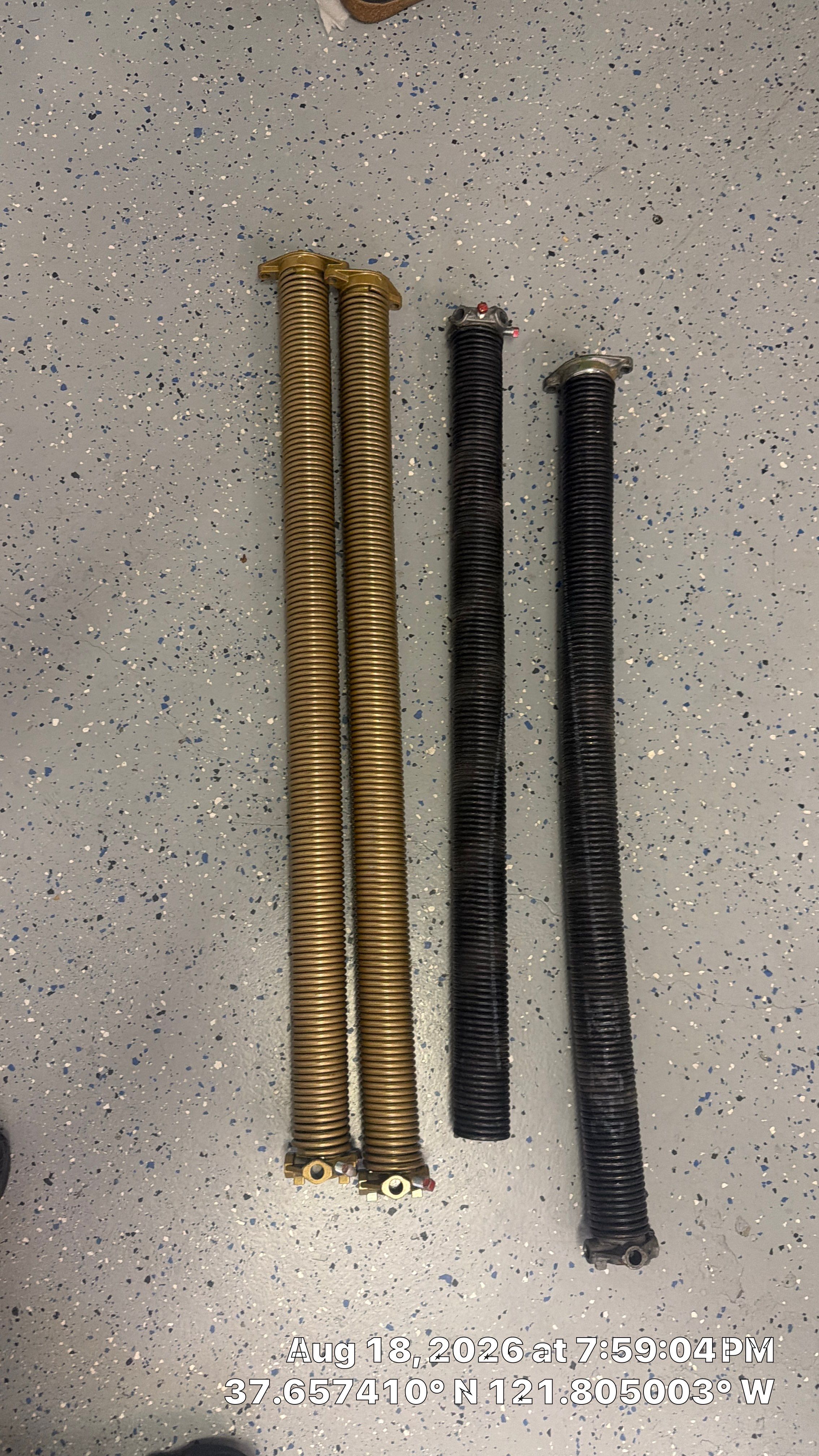

Old springs versus new, powder coated powder coated versus oil tempered.

Livermore garage door project photo 19 — Project photo 19

Project videos

How Do You Spot Worn Garage Door Hinges and Rollers?

This Livermore field video shows how worn hinges, rollers, fasteners, and vertical-track hardware can reveal developing garage door problems.
